Integrating AdsPower with XProxy
Learn how to connect your XProxy mobile proxy channels to AdsPower anti-detect browser and configure API links for automated IP rotation.
Why use XProxy with AdsPower?
AdsPower is a leading anti-detect browser used for multi-accounting, social media management, and ad verification. When paired with XProxy self-hosted mobile proxies, you gain 100% private carrier IPs with dynamic mobile trust scores, virtually eliminating checkpoint and ban issues on platforms like Facebook, Google, and TikTok.
Prerequisites
Before you begin, ensure you have:
- XProxy server configured and running.
- At least one active USB dongle or Android device with a working SIM card.
- If accessing XProxy from outside your local network, ensure NAT Forwarding or VPS forwarding is configured.
Step-by-Step setup in AdsPower
1. Get your proxy details
Log in to your XProxy Dashboard, navigate to Proxy Management, and click the Export Proxy button on the top toolbar:
In the Export Proxies window, select your desired Authentication Format (e.g. ip:port:user:pass or ip:port) and click Copy All:
- Server IP: Your public IP (or local IP if on the same LAN).
- Port: The port corresponding to your target dongle/carrier (e.g.,
5001for SOCKS5 on Device #1). - Proxy Credentials: Username and Password if authentication is enabled.

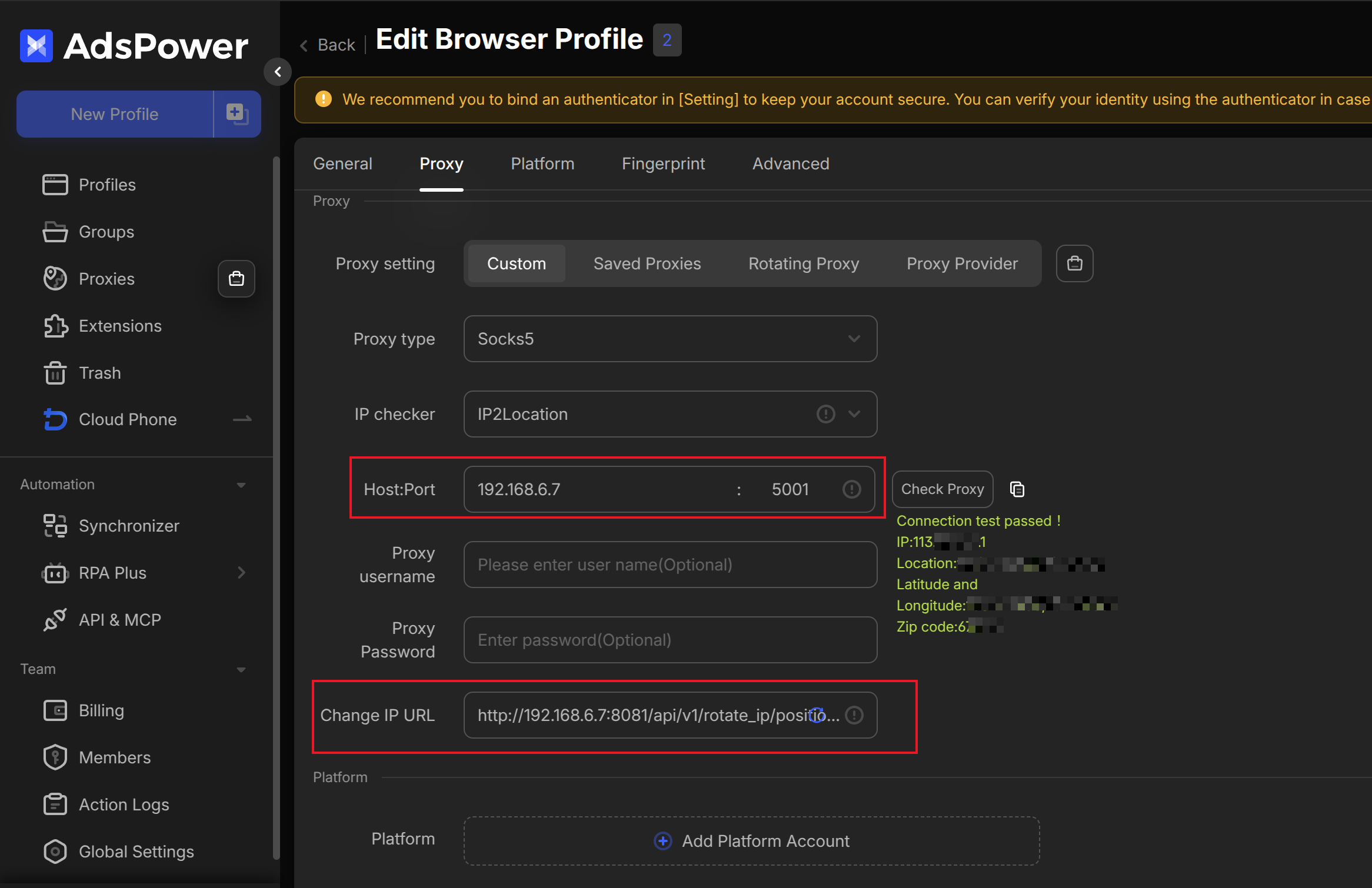

2. Create a new profile in AdsPower
- Open AdsPower and click + New Profile.
- In the Proxy section, select SOCKS5 (recommended for UDP stability) or HTTP.
- Fill in your XProxy IP, Port, Username, and Password.
- Click Check Proxy to verify connection. You should see a green success message with your mobile carrier details.
3. Configure auto IP rotation link
AdsPower supports automatic IP rotation via URL before launching profiles:
- In the profile setup window, scroll to Proxy IP Change URL.
- Paste your XProxy rotation API endpoint using the position-based URL format:
http://192.168.6.7:8081/api/v1/rotate_ip/position/1 - Every time AdsPower launches this profile (or when you click the Rotate button in AdsPower UI), XProxy will send an AT command to reboot the corresponding 4G/5G modem and acquire a fresh cellular IP from your carrier network.
XProxy Hardware & Fingerprint Synchronization
To ensure 100% profile isolation and prevent account flags in AdsPower:
- Timezone & Geolocation: Set both to Auto. AdsPower will query XProxy's mobile exit IP and match your browser timezone and GPS coordinates to your cellular carrier's CGNAT location.
- WebRTC Leak Protection: Set WebRTC to Altered / Replace or Disabled to prevent WebRTC UDP requests from exposing your true local IP address.
- TCP OS Spoofing Alignment: Enable TCP OS Spoofing in XProxy Device Settings so SYN/ACK packet header signatures match your AdsPower profile OS (Windows or macOS).
XProxy Mobile Modem Strategy Matrix for AdsPower
| Use Case | XProxy Modem Mode | Recommended Protocol | IP Rotation Interval |
|---|---|---|---|
| Ad Farming (FB/Google/TikTok) | Dedicated Hilink 4G/5G Dongle | SOCKS5 (UDP Enabled) | Manual / Per Campaign Launch |
| Multi-Account Management | Shared Mobile Pool / Android Farm | SOCKS5 / HTTP Proxy | Scheduled (Every 15-30 Mins) |
| E-commerce & Web Scraping | High-Speed 5G USB Modem | HTTP / SOCKS5 | API Trigger / Per Request |
Verification & Fingerprint Audit Tools
Before launching AdsPower profiles, audit your XProxy mobile connection using our free built-in leak checker and industry-standard verification suites:
- XProxy Free Proxy Leak Test (/proxy-leak-test) — Instantly verify WebRTC leaks, DNS queries, TCP OS fingerprinting, and cellular IP geolocation directly within XProxy.
- BrowserLeaks.com — Verify IP geolocation, WebRTC, and DNS leak protection.
- Whoer.net — Check overall anonymity score (target 100%).
- Pixelscan.net — Audit browser fingerprint consistency and detect proxy flags.
- IPhey.com — Evaluate browser hardware spoofing and IP trust level.
Troubleshooting Common Issues
- Proxy Connection Check Failed: Verify that your XProxy server IP and port are reachable from your network. Check if username/password authentication contains whitespace or special characters.
- WebRTC IP Leak Detected: In AdsPower, navigate to Profile Settings ➔ Advanced ➔ WebRTC, and select Disabled or Replace. Test your profile at
browserleaks.com/webrtc. - Rotation API Error / Timeout: Reconnection on 4G/5G networks takes 3 to 8 seconds. Ensure your AdsPower timeout buffer is set to at least 10 seconds.
Why High-Quality SOCKS5 UDP & Mobile Proxies Matter for AdsPower
Using cheap datacenter proxies or basic HTTP proxies in antidetect profiles leads to instant account suspensions on Facebook, Google, TikTok, and Amazon. Here is why XProxy's self-hosted 4G/5G mobile proxies deliver superior anonymity and trust:
- SOCKS5 with Full UDP Support: Unlike standard HTTP proxies that drop UDP packets, XProxy SOCKS5 proxies fully support UDP datagrams. This ensures WebRTC, DNS queries, and real-time audio/video sockets route securely through your proxy without revealing your real IP address.
- Instant REST API IP Rotation: Trigger cellular IP rotation on demand via simple HTTP GET requests (e.g.
http://192.168.6.7:8081/api/v1/rotate_ip/position/1). Reconnect 4G/5G USB modems in 3 to 8 seconds with zero proxy dropouts. - 100% WebRTC & DNS Leak Protection: Combined with XProxy's local LAN gateway and TCP OS Spoofing, your browser profiles maintain pristine anonymity scores on BrowserLeaks, Whoer, Pixelscan, and IPhey.
- Carrier-Grade NAT (CGNAT) Trust: Mobile carrier IPs are shared by thousands of active smartphone users. Major platforms never ban mobile IP ranges, granting your accounts maximum trust.
