Home › Shop › XLE-5 All-in-One Kit — 5 modems
← Back to shop
All-in-One Kit

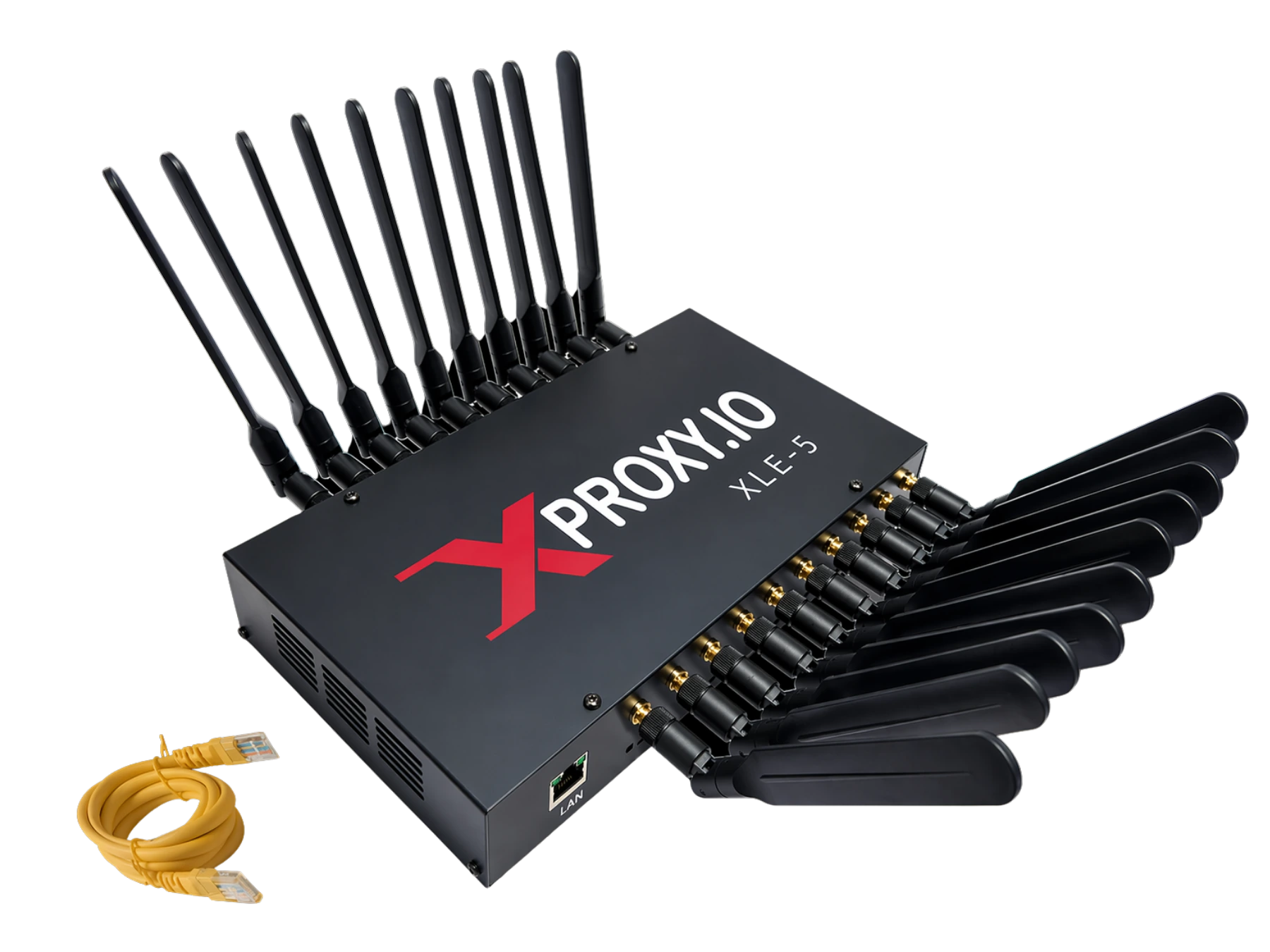

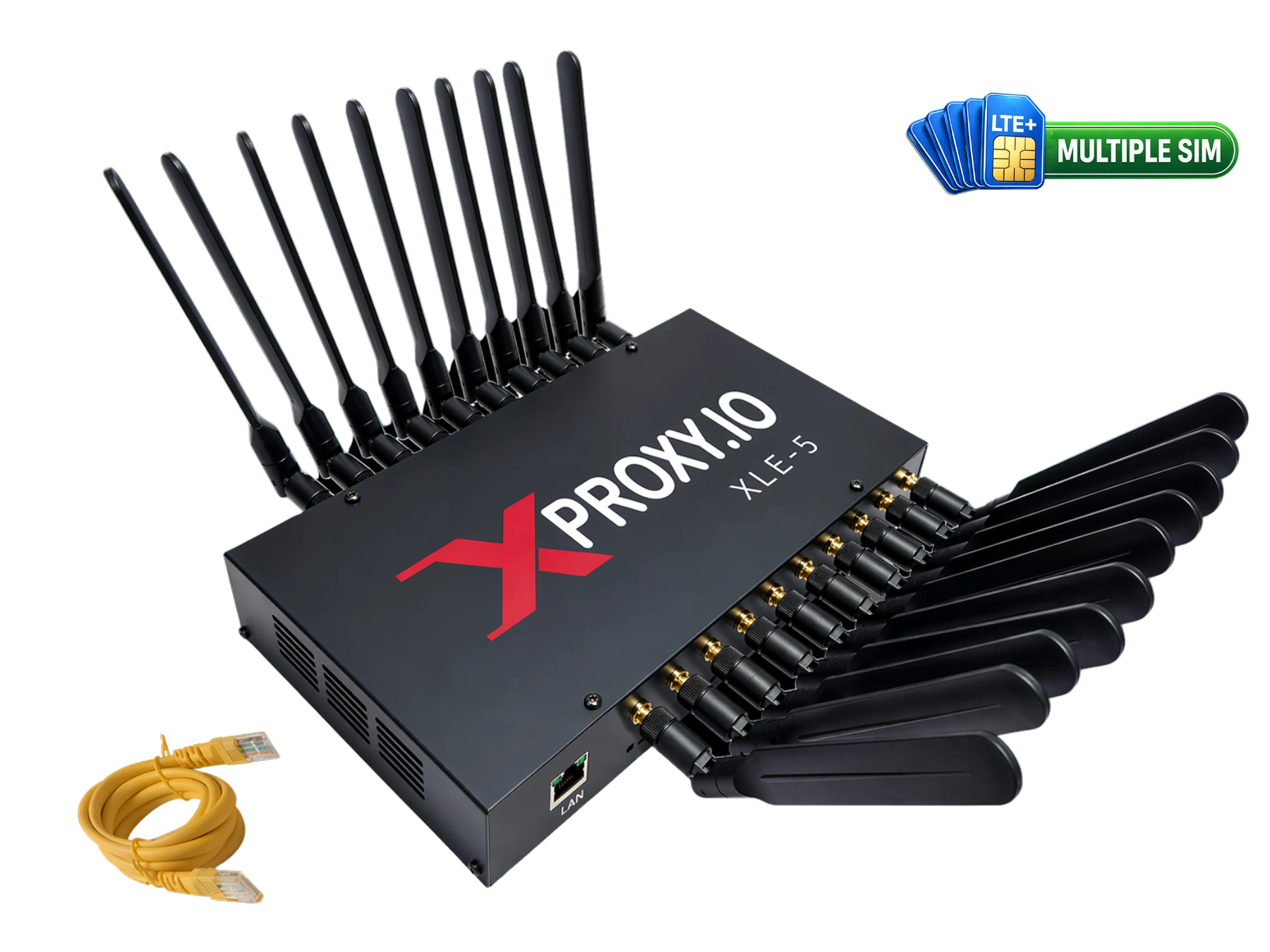

XLE-5 All-in-One Kit — 5 modems

Server and modems in one unit: a clean all-in-one proxy farm with fewer cables.

  • Integrated modem hardware
  • Cleaner than dense USB dongle farms
  • Built for managed deployments
  • 12-month enterprise warranty
Network type
Kit size (modems)
Software
Compare all features ↗
Hardware (5 modems)$670.00
Software · selectedFree plan
Total today$670.00
SIM cards not included
* Shipping calculated at checkout Shipping policy
● Pre-order

Pre-order item: not in stock yet. Ask our sales team for the expected ship date.

Talk to sales
  • 12-month hardware warranty
  • Ships worldwide in 3–7 business days
  • Free lifetime tech support
  • Pay with crypto or arrange it with sales

What's in the box

Tap a number to see the part. The picture shows a sample kit; the list gives the counts for the size you picked.

XLE-5 All-in-One Kit — 5 modems: everything in the box, laid out flat

SIM cards not included

Overview

Integrated all-in-one proxy hardware for clean deployments with fewer dongles, cables, and external parts.

The XProxy XLE5 All-in-One kit is the premium standard for clean, professional proxy deployments.

By putting everything into one board, it prevents connection drops, reduces cable clutter, and runs cool and silent under continuous loads.

Built for

  • Cleaner server room setups
  • Enterprise mobile proxy operations
  • Highly stable multi-modem deployments

How it works

Every proxy port is one modem with its own SIM, so each proxy has its own real mobile IP.

  1. Your app

    Your browser, bot or script connects to a proxy port, over HTTP(S) or SOCKS5.

  2. XProxy server

    Built into the XLE unit: sends each proxy port to its own modem and keeps the modems online.

  3. Built-in modems

    One SIM card, one proxy. Each modem is its own 4G+ or 5G connection.

  4. Mobile carrier

    Gives the modem a real mobile IP. Rotate, and a new one comes in seconds.

  5. The website

    Sees an ordinary visitor on a mobile network, like a phone.

More bands, more speed

A modem gets faster by combining radio carriers (carrier aggregation) and by catching them with more antennas (MIMO). How the three XProxy network classes compare:

  1. 4G LTEXH22CAT4 · one bandBuilt-in antenna
    150 Mbpsrated max

    One carrier band. Plenty for browsing, accounts and scraping at volume. See the XH22 kit →

  2. 4G+ LTE-AdvancedXM16 · XLE 4G+This kitCAT12 · 3–4 bands combined2 external antennas
    600 Mbpsrated max · real-world 80–250 Mbps

    Carrier aggregation bonds 3 or 4 bands into one connection: faster, and steadier on busy towers.

  3. 5G Sub-6XM55 · XCPE · XLE 5GThis kit2–3 wide 5G carriers + 4×4 MIMO4 external antennas · 4×4 MIMO
    2.5 Gbpsrated max · real-world 300–1200 Mbps

    Wide 5G carriers bonded together, with LTE up to 7 bands as fallback.

Rated maxima from the modem spec sheets. Real speed depends on your carrier, its bands in your area and the signal.

Set up in about 10 minutes

4 simple steps from unboxing to live proxies. Each step plays in 3D as you scroll to it. Open the full 3D guide →

1 / 4 · In the box

A whole proxy farm in one unit

Five modems and the XProxy server in one fanless box, with its antennas and cables. No dongles, no hub. Just add SIM cards.

Modems
5
Cooling
Fanless
2 / 4 · SIM & antennas

Five SIMs, five mobile IPs

Each unit has five SIM trays and its antennas. Every modem inside becomes its own proxy with a real carrier IP.

Works with 182 carriers in 72 countries

  • Europe35🇩🇪🇬🇧🇵🇱🇫🇷🇪🇸🇮🇹🇺🇦🇷🇺🇳🇱🇧🇪🇨🇭🇦🇹+23
  • Americas8🇺🇸🇨🇦🇧🇷🇲🇽🇦🇷🇨🇴🇨🇱🇵🇪
  • Asia-Pacific14🇲🇾🇹🇼🇦🇺🇰🇷🇯🇵🇹🇭🇮🇩🇵🇭🇸🇬🇮🇳🇳🇿🇭🇰+2
  • Middle East & Africa15🇹🇷🇿🇦🇳🇬🇪🇬🇸🇦🇦🇪🇮🇱🇲🇦🇩🇿🇹🇳🇰🇪🇬🇭+3
Carriers and bands by country →
Network
4G+ (LTE-Advanced) or 5G
SIM
5 SIM trays (2FF)
Bands
4G+: 19 FDD · 5 TDD · 5G: 28 5G bands
3 / 4 · Router

One network cable

Plug the unit into your router. The server is built in, so there is nothing else to wire.

Connection
1× Gigabit RJ45
4 / 4 · Go live

Proxies live in minutes

Power on, open the dashboard and copy your proxies. A fresh mobile IP is one click away.

Speed
600 Mbps (4G+) · 2.5 Gbps (5G)
Full spec sheet
ArchitectureAll-in-One Integrated Chassis (Board + Server + Modems)
Modem ChipsetQualcomm Cellular Engine (CAT12 LTE+ / 3GPP Rel. 16 5G)
Integrated Modems5x Integrated Cellular Modems (Available in LTE+ CAT12 or 5G Sub-6)
Network Uplink1x Gigabit RJ45 Ethernet Port
SIM Form FactorStandard SIM (2FF) Trays x5
Cabling / HubsNone required (Fully Self-Contained)
Thermal DesignIndustrial Silent Fanless Heat Dissipation
SoftwareXProxy OS Pre-installed Lifetime
Capacity Sizing5 Dedicated Lines
Warranty12 Months Enterprise Warranty
Not sure which kit? Compare kits →

Powered by the XProxy dashboard

Every XProxy kit and modem runs the same software. The free plan covers up to 5 modems; paid plans add the tools below.

Rotate any IP in one click

Every modem is a row in one web dashboard: its proxy address, carrier, public IP and signal. Rotate one modem or all of them, and watch the new IP come in.

  • Rotate by click, on a timer, by link or through the API
  • IP change history and rotation stats
  • Speed test, IP quality score and setup check per modem
Demo data

Every protocol your tools speak

Each modem serves HTTP(S) and SOCKS5 out of the box, plus encrypted VLESS and Shadowsocks, and a ready OpenVPN or WireGuard config to route a whole device through one SIM.

  • HTTP(S)
  • SOCKS5 + UDP
  • VLESS
  • Shadowsocks
  • OpenVPN
  • WireGuard
  • IPv4 / IPv6
  • SOCKS5 with UDP, so QUIC and HTTP/3 work
  • Password or whitelist-IP login on every port
Demo data

Looks like a real phone or PC

Pick the device each proxy should look like: Windows, macOS, iPhone or Android. XProxy shapes the connection to match, so websites see the same device your browser profile claims to be.

  • TCP/OS fingerprint profile per proxy
  • DNS Faker and WebRTC leak prevention
  • TTL presets and IMEI change
Demo data

Sell proxies like a provider

Turn your farm into a proxy business: create shared ports for your customers, set data quotas, speed limits and expiry dates, hand each customer a link to rotate their own IP, and reuse your setups as templates.

  • Shared ports and proxy groups across modems
  • Customer token links with data quotas
  • Selling Platform with payouts, and listing on ProxyMarket
Demo data

Frequently asked

Quick answers about ordering, shipping and operating the XLE-5 All-in-One Kit — 5 modems.

What is an All-in-One kit?

An All-in-One kit integrates the modems, power delivery, and control board into a single chassis, eliminating external USB cabling.

Does this use external hubs?

No. The XLE series is fully self-contained, meaning you do not need external USB hubs or switches unless daisy-chaining multiple servers.

How long does delivery take?

Orders usually ship worldwide in 3–7 business days with DHL, UPS or FedEx. Any remote-area surcharge is shown at checkout before you pay.

What is in the box?

Everything you need to go live: the modems, a pre-configured XProxy server, USB hubs or a network switch, power adapters and cables, with XProxy OS installed. The exact list for your size is under "What's in the box" above.

Are SIM cards included?

No. The modems are carrier-unlocked, so you can use any local data SIM. SIM cards are not included.

What warranty and support do I get?

Every kit comes with a 12-month hardware warranty and free lifetime tech support.

1 more questions
How can I pay?

Pay with crypto (USDT or USDC) at checkout, or ask our sales team to arrange another payment method.

Other sizes of this kit

Ready to deploy the XLE-5 All-in-One Kit — 5 modems?

Pre-configured, shipped worldwide, with a 12-month hardware warranty and free lifetime tech support.

Total today$670.00
