LTE Advanced

XM16 LTE+ Dongle

High-throughput LTE Advanced CAT12 proxy modem with global band coverage across the Americas (USA, Canada, Brazil), Europe (UK, Germany, France), Asia (Japan, South Korea, Vietnam), and Africa (South Africa, Nigeria, Kenya). Features 3C/4C Carrier Aggregation, dual external antennas, standard SIM tray, and dashboard band locking.

  • 4G+ LTE Advanced CAT12 (up to 600 Mbps) with 3C/4C Carrier Aggregation
  • Worldwide carrier coverage across Americas, Europe, Asia & Africa
  • Native SOCKS5, HTTP(S), VLESS (REALITY) & VPN protocol support
  • Dual external antennas, hardware band locking & fast ~3s IP rotation
Wholesale Pricing
Unit Price$60.00 / pc
Total today$60.00
* Shipping calculated at checkout Shipping policy
● Pre-order

Pre-order item: not in stock yet. Ask our sales team for the expected ship date.

  • 12-month hardware warranty
  • Ships worldwide in 3–7 business days
  • Free lifetime tech support
  • Pay with crypto or arrange it with sales
Buy as kit →Ready-made kits from $520.00 (5 modems)

Overview

The XM16 is the optimal cost-effective modem for commercial 4G mobile proxy providers requiring certified multi-carrier compatibility across Asia, Europe, the Americas, and Africa.

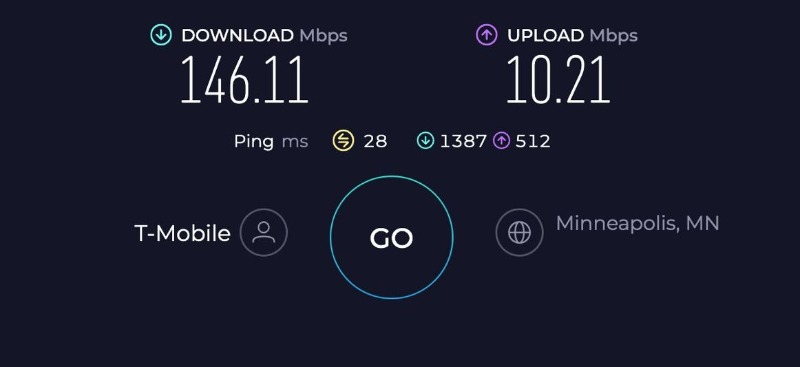

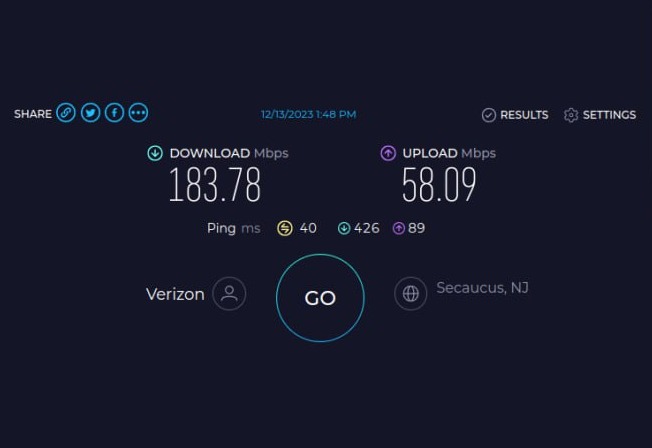

By utilizing LTE Advanced CAT12 technology with 3C/4C Carrier Aggregation and external antenna connectivity, it overcomes cell tower congestion to deliver rock-solid 80–250 Mbps real-world speeds worldwide.

See it in action

Real hardware and the real dashboard, in a short silent loop.

  • Every SIM is its own mobile IP
  • Rotate any IP in seconds
  • All your modems in one dashboard
Demo data

Performance & details

  • Up to 600 Mbps download / 150 Mbps upload (Real-world: 80–250 Mbps)
  • 3C / 4C Carrier Aggregation (combines 3–4 cellular channels simultaneously)
  • Worldwide coverage across Americas (USA, Canada, Mexico, Brazil), Europe (UK, Germany, France, Spain, Italy), Asia (Japan, South Korea, India, Singapore, Vietnam) & Africa (South Africa, Nigeria, Kenya, Egypt)
  • Manual Hardware Band Locking supported via XProxy dashboard
  • Standard SIM (2FF) industrial full-size swappable tray
  • Dual external antenna connectors (TS9/SMA) for fringe signal zones
  • SuperSpeed USB 3.0 interface for maximum multi-stream bandwidth
  • Low-latency architecture ideal for commercial proxy reselling
  • Hardware IMEI changing & fast ~3–5s rotation cycle

Ideal Use Cases

  • Commercial 4G mobile proxy reselling business
  • High-bandwidth video streaming & social media automation
  • Locations with weak or crowded cellular signal requiring external antennas
  • High-concurrency multi-threaded web scraping

Specs at a glance

The numbers that matter. The full spec sheet is below.

  • Network4G+ LTE-A CAT12
  • Speed600 MbpsRated maximum
  • Bands19 FDD · 5 TDD
  • SIMSIM (2FF)
  • Antennas2× external
  • ConnectionUSB 3.0

Technical specifications

Network Class4G+ LTE Advanced CAT12 (3GPP Rel. 12)
Modem ChipsetQualcomm Snapdragon LTE Advanced (CAT12)
Speed600 Mbps DL / 150 Mbps UL (Real-world: 80–250 Mbps)
Carrier Aggregation3C DL / 2C UL CA (Combines up to 3 bands simultaneously)
4G FDD-LTE BandsB1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B66
4G TDD-LTE BandsB41, B42, B43, B46, B48
3G WCDMA / HSPA+B1, B2, B3, B4, B5, B6, B8, B9, B19
Protocols SupportedSOCKS5, HTTP(S), VLESS (REALITY), WireGuard & OpenVPN
Regional CoverageAmericas (USA, Canada, Mexico, Brazil), Europe (UK, Germany, France, Spain, Italy), Asia (Japan, South Korea, India, Singapore, Vietnam), Africa (South Africa, Nigeria, Kenya, Egypt)
Hardware Band LockingSupported via XProxy Dashboard (Lock B1, B2, B3, B4, B7, B66, etc.)
SIM Card SlotStandard SIM (2FF) Industrial Swappable Tray
Host InterfaceSuperSpeed USB 3.0 (Type-A)
Antenna InterfaceDual External Antenna Connectors (TS9/SMA)
Power Requirement5V, 1.2A – 1.5A per port (Requires Powered Hub)
IP Rotation Speed~3–5 seconds (Hardware Reset)
IP Protocol SupportIPv4 & IPv6 Dual-Stack
Carrier CompatibilityGlobal GSM Unlocked (North America, Europe, Asia, LATAM, Africa)
Warranty12 Months Replacement Warranty
IMEI ManagementHardware IMEI Changing & Auto-Rotation Supported

Powered by the XProxy dashboard

Every XProxy kit and modem runs the same software. The free plan covers up to 5 modems; paid plans add the tools below.

Rotate any IP in one click

Every modem is a row in one web dashboard: its proxy address, carrier, public IP and signal. Rotate one modem or all of them, and watch the new IP come in.

  • Rotate by click, on a timer, by link or through the API
  • IP change history and rotation stats
  • Speed test, IP quality score and setup check per modem
Demo data

Every protocol your tools speak

Each modem serves HTTP(S) and SOCKS5 out of the box, plus encrypted VLESS and Shadowsocks, and a ready OpenVPN or WireGuard config to route a whole device through one SIM.

  • HTTP(S)
  • SOCKS5 + UDP
  • VLESS
  • Shadowsocks
  • OpenVPN
  • WireGuard
  • IPv4 / IPv6
  • SOCKS5 with UDP, so QUIC and HTTP/3 work
  • Password or whitelist-IP login on every port
Demo data

Looks like a real phone or PC

Pick the device each proxy should look like: Windows, macOS, iPhone or Android. XProxy shapes the connection to match, so websites see the same device your browser profile claims to be.

  • TCP/OS fingerprint profile per proxy
  • DNS Faker and WebRTC leak prevention
  • TTL presets and IMEI change
Demo data

Sell proxies like a provider

Turn your farm into a proxy business: create shared ports for your customers, set data quotas, speed limits and expiry dates, hand each customer a link to rotate their own IP, and reuse your setups as templates.

  • Shared ports and proxy groups across modems
  • Customer token links with data quotas
  • Selling Platform with payouts, and listing on ProxyMarket
Demo data

Frequently asked

Which 4G LTE frequency bands and countries are supported by XM16?

The XM16 features true global LTE-A band coverage and works with all GSM mobile operators worldwide. Supported bands include: FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29 (DL), B30, B32 (DL), B66; TDD-LTE: B41, B42, B43, B46 (LAA), B48 (CBRS); 3G WCDMA: B1, B2, B3, B4, B5, B6, B8, B9, B19. It operates seamlessly across all major continents: • Americas: USA (AT&T, T-Mobile, Verizon with B2/B4/B12/B13/B66 & CBRS B48), Canada (Rogers, Bell, Telus), Mexico (Telcel), Brazil (Claro, Vivo). • Europe: UK (EE, Vodafone, O2), Germany (Telekom, Vodafone), France (Orange, SFR), Spain (Movistar), Italy (TIM), Poland, Netherlands. • Asia: Japan (Docomo, SoftBank, KDDI with B1/B3/B8/B18/B19/B41/B42), South Korea (SKT, KT), India (Jio, Airtel), Singapore (Singtel), Malaysia, Vietnam (Viettel, Vinaphone). • Africa: South Africa (Vodacom, MTN), Nigeria (MTN, Airtel), Kenya (Safaricom), Egypt (Vodafone). • Oceania: Australia (Telstra, Optus), New Zealand (One NZ, Spark). With 3-Carrier Aggregation (3CA), it bonds multiple bands simultaneously to guarantee high throughput even during peak cell tower traffic.

What is the advantage of Carrier Aggregation (CAT12)?

Carrier Aggregation combines 3 to 4 cellular frequency bands into a single virtual connection. This delivers 2x to 4x higher real-world speeds (80-250 Mbps) and significantly lower latency, especially on crowded cell towers where single-band modems struggle.

Can I lock the XM16 to specific bands?

Yes! The XM16 supports manual Hardware Band Locking directly from the XProxy web dashboard. You can lock modems to uncongested high-speed bands like B1, B3, or B7 for maximum throughput and stability.

What SIM card format does the XM16 use?

The XM16 features an industrial Standard SIM (2FF) tray designed for continuous hot-swapping without damaging contact pins. If using a Nano SIM, insert it into a Standard SIM adapter frame.

Does the XM16 support external antennas?

Yes, the XM16 has external antenna ports, allowing you to attach high-gain antennas or extension cables to place antennas near windows for optimal reception.
